Sheriff Badge SVG File: Custom Six-Point Star Design for CNC & Laser Engraving
A sheriff's star badge is one of the most recognizable symbols in American law enforcement history. This guide walks through everything you need to know about using a custom sheriff badge SVG/DXF file for CNC routing, laser engraving, and vinyl cutting projects.
What Is a Sheriff Badge SVG File?

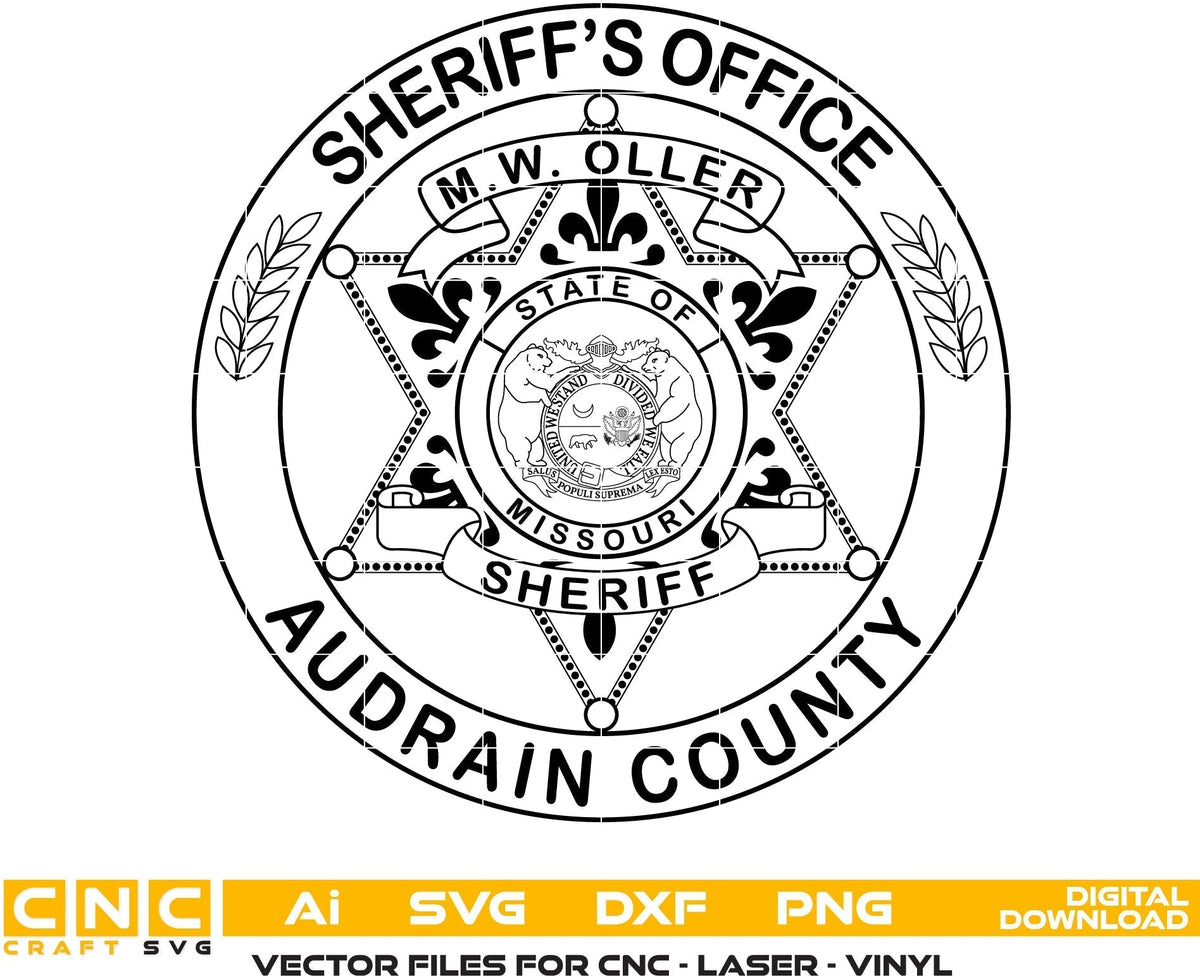

A sheriff badge SVG file is a scalable vector recreation of the classic six-point star badge style used by county sheriff's offices across the United States. Unlike the eagle-top shield style used by municipal police departments, the six-point star is the traditional mark of a county sheriff's office, often paired with a state seal at the center and circular text bands around the border.
Common design elements include:
- Six-point star with beaded or dotted trim along each point
- Outer circular band with department name and county
- Center medallion featuring a state seal or emblem
- Ribbon banner for a title (e.g., "SHERIFF")
- Fleur-de-lis or decorative accents between star points
- Open text fields for a name, title, or badge number
Why This Design Works Well for CNC & Laser Projects
1. Clean Vector Construction Because the six points of the star are built from a repeating, symmetrical pattern, the file maintains consistent spacing and proportion, which translates into smoother toolpaths and even engraving depth across all six points.
2. Layered for Easy Customization Text elements (county name, department name, title banner, and personalized name plate) are kept on separate, editable layers, so the same base star template can be reused for different counties, departments, or individual honorees.
3. State Seal Compatibility Since state seals are public domain government emblems, they can be incorporated into the center medallion of the design. This gives the badge an authentic, official appearance while keeping the surrounding text fully customizable.
Best Materials & Methods
| Method | Best Material | Recommended Use |
|---|---|---|
| CNC Routing | Walnut, oak, cherry hardwood | Retirement plaques, desk displays |
| CNC Routing | Brass, aluminum | Ceremonial or ornamental badges |
| Laser Engraving | Acrylic (clear or black) | Award plaques, backlit signage |
| Laser Engraving | Baltic birch plywood | Budget-friendly gift plaques |
| Laser Cutting | Leather | Wallet-style badge holders, patches |
Preparing the File for Production
- Convert text to outlines before importing into CNC or laser software, since live fonts won't render correctly on most machines.
- Isolate the center medallion artwork (state seal or emblem) on its own layer if fine detail engraving is needed at a different power/speed setting than the surrounding star.
- Verify symmetry of the six star points after any edits. Even small adjustments to one point should be mirrored across all six to keep the badge balanced.
- Test-cut on scrap material first, particularly for the beaded/dotted trim detail, which can blur at low engraving resolution.
Who This Design Is Perfect For
- County sheriff's office retirement gifts and commendations
- Custom department commissions and bulk orders
- Academy graduation and swearing-in ceremony gifts
- Personalized memorial and tribute plaques
- Desk or wall display pieces for active or retired sheriffs
Frequently Asked Questions
What's the difference between a sheriff badge and a police badge design? Sheriff badges traditionally use a six-point star shape tied to county-level law enforcement, while municipal police badges typically use an eagle-top shield design. Both can be fully customized with department names, titles, and personal details.
Can the county name and sheriff's name be changed on this design? Yes. The outer text band, title banner, and center details are built as separate editable elements, so the design can be relabeled for any county, department, or individual.
What file format is best for CNC engraving a sheriff badge? DXF is the standard format for CNC import and toolpath generation, while SVG serves as the editable master file for resizing and text changes before production.
Is it possible to include a state seal in the center of the badge? Yes. State seals are public domain government emblems and can be incorporated into the center medallion, giving the badge an authentic, official look.
Looking for the ready-to-use file? This sheriff's star badge design is available as an instant digital download in SVG, DXF, AI, and PNG formats, fully editable and ready for your next CNC or laser project.
